| TYPE | DESCRIPTION |
| Part Number: | IRLML2402TR |
| Description: | MOSFET N-CH 20V 1.2A SOT-23 |
| Lead Free Status / RoHS Status: | |
| Drain to Source Voltage (Vdss) | 20V |
| FET Feature | - |
| Rds On (Max) @ Id, Vgs | 250 mOhm @ 930mA, 4.5V |
| Vgs(th) (Max) @ Id | 700mV @ 250µA |
| Current - Continuous Drain (Id) @ 25°C | 1.2A (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Supplier Device Package | Micro3™/SOT-23 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 110pF @ 15V |
| Power Dissipation (Max) | 540mW (Ta) |
| Mounting Type | Surface Mount |
| Vgs (Max) | ±12V |
| Meta Part Number | IRLML2402CT-ND |
| Technology | MOSFET (Metal Oxide) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.7V, 4.5V |

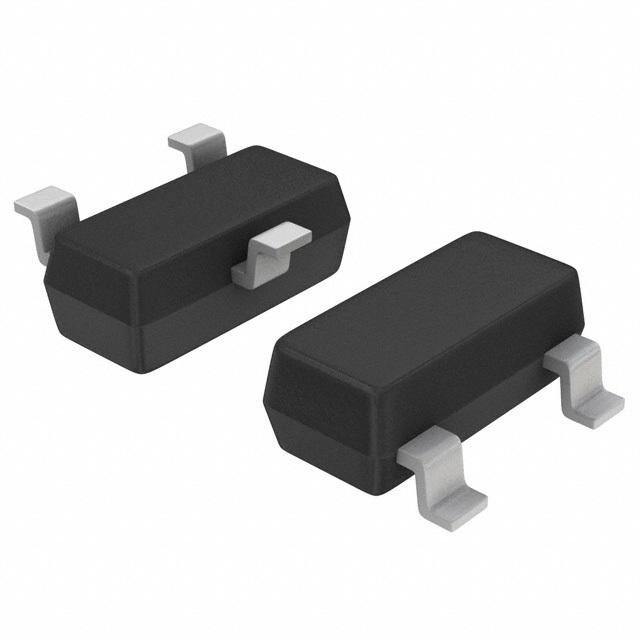

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Packaging | Cut Tape (CT) |
| Gate Charge (Qg) (Max) @ Vgs | 3.9nC @ 4.5V |
| Other Names | *IRLML2402TR ","IRLML2402 ","IRLML2402-ND ","IRLML2402CT |
| Detailed Description | N-Channel 20V 1.2A (Ta) 540mW (Ta) Surface Mount Micro3™/SOT-23 |
| Series | HEXFET® |
| FET Type | N-Channel |
